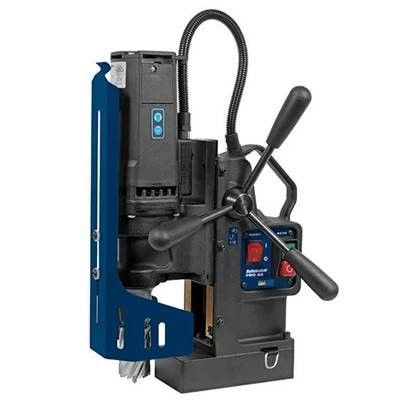

DRILL HOLEMAKER MAGNETIC BASE HMPRO42
Stock Code:
908079
Supplier Stock code:
HMPRO42
Price:
$2,114.00 Inc GST
Stock Level:
Low Stock
All pricing includes GST. Prices are for SA customers and are subject to change without notice. Freight & Shipping outside of Adelaide metro will incur additional Freight charges
Description
New generation machines with the latest technology and design.
- New Rigid Frame Design Provides increased life of cutting tools.
- New Extra Large 165mm Stroke Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.
- Magnetic Field Shape Control (MFSC) Provides maximum holding power on thin materials.
- Lightweight & Powerful The new generation Holemaker machines are lighter and more powerful than other brands on the market.
Features:
- European made machine
- Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck
- Through spindle coolant system, with an external side mounted gravity feed coolant tank
- The feed handles can be placed on either the left or right hand side, for increased versatility
- Smart magnet technology to ensure sufficient magnetic adhesion
- Integrated cutter guard for increased user safety
- Supplied in a blow mould plastic carry case
- Grub screw arbor system, which fastens positively onto Holemaker cutters
- 13mm drill chuck SADCA-13 available separately
SPECIFICATIONS
- Capacity (Diameter): 42mm
- Capacity (Depth): 52mm
- Capacity (Twist Drills): 10mm (Jobber Drills)
- Capacity (Twist Drills): 13mm (Stub Drills)
- Capacity (Twist Drills): 16mm (Weldon Shank Drills)
- Motor Power: 1020 Watt
- Input Power: 1100 Watt Single Phase 240V
- Speed: 440rpm
- Weight: 12.5kg
- Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
- Stroke: 165mm
- Height (Min. / Max.): 346 / 511mm
