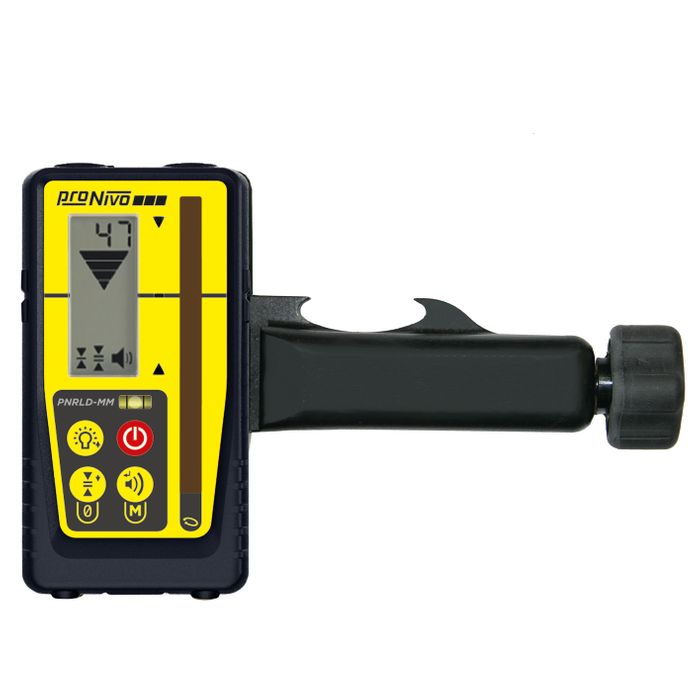

LASER RECEIVER MM RED GREEN ROT PRONIVO PNRLD-MM
Stock Level
Stock Locations
-
Kilburn:In Stock
-
Newton:Low Stock
-
Mt Barker:Low Stock
-
Darwin:Out of Stock
-
Sheidow Park:Out of Stock
-
Hackham:Out of Stock
All pricing includes GST. Prices are for SA customers and are subject to change without notice. Freight & Shipping outside of Adelaide metro will incur additional Freight charges
Description
Features:
- Digital readout of the laser height in millimeters
- Huge 90 mm reception height
- Offset in the reception can be set individually
- Extreme robustness for the toughest construction jobs
- Very small, compact and easy to use
- Strobe light rejection filter built-in
- High resolution photo diode with anti-reflection technology
Technical data:
Detection range 1 m – 300 m radius (depending on
rotary laser)
Reception window height 90 mm
Reception angle ± 70°
Channels 9
Accuracy (mm)
Fine 1,0
Medium 2,0
Coarse 5,0
Very coarse 10,0
Laser wave length 450 nm to 800 nm
Power supply 1 x 1.5 V AA battery
Operating time 50+ hours
Dimensions (without clamp) 134 x 69 x 25 mm
Weight (without clamp) 175 g
Operating temperature -20°C to +50°C
IP protection IP67
Speciality – programmable offset
Using the programmable offset you can set the zero line as you need it:
between -10 and +45 mm of the reception window. If the laser levels which
you want to detect are normally higher than the laser detector, shift the zero
line accordingly. You will see the reading earlier to precisely align your zero
elevation.
Clamp
The rod clamp of the PNRLD-MM is extremely robust. It can be quickly attached to the rod, saves time and can be fixed on different materials and shapes.
Application:
Detection of rotating beams and a precise millimeter readout of the elevation difference
Scope of delivery:
- Millimeter readout detector PNRLD-MM
- Clamp
- 1 AA battery
