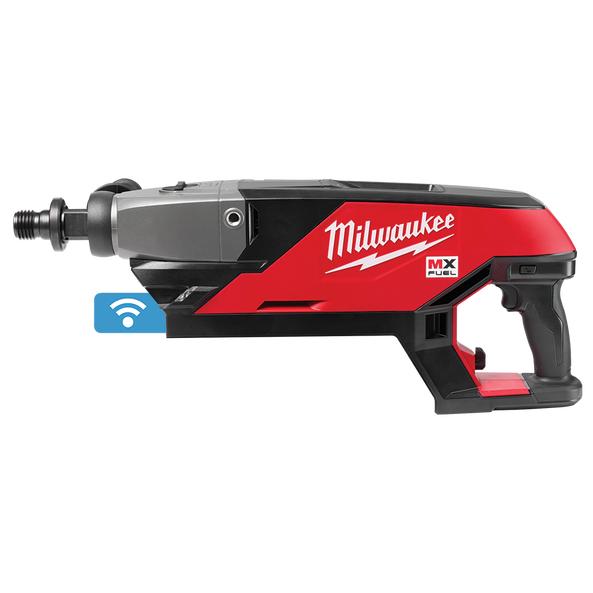

MILWAUKEE MX FUELâ„¢ HANDHELD CORE DRILL

Stock Code:
222216
Supplier Stock code:
MXFDCD150-0C
Price:
$2,599.00 Inc GST
Stock Level:
Pre-order

All pricing includes GST. Prices are for SA customers and are subject to change without notice. Freight & Shipping outside of Adelaide metro will incur additional Freight charges

Allow 5-6 day lead time for delivery or collection

Description

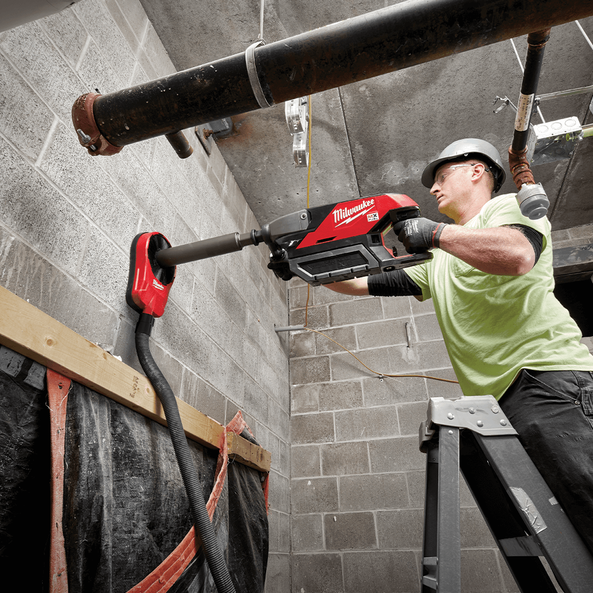

The Milwaukee® MX FUEL™ equipment system goes beyond the limitations of petrol and corded units, utilising the industry's most advanced batteries, motors, and electronics to deliver the best experience for users. This is equipment, redefined. The MX FUEL™ Handheld Core Drill allows users to core with more confidence through maximum control and enhanced safety with a patented clutch and AUTOSTOP™ technology that prevents over-rotation in case of the machine getting bound up. It delivers the power to core up to 152 mm holes in reinforced concrete while the integrated pressure gauge helps maintain drilling pressure to maximise productivity and runtime. Coupled with the LED level, this ensures easy, accurate holes while handheld. Compatible with the M18™ SWITCH TANK™ 15L Backpack Water Tank Supply with Powered Base, onboard Quick-Connect allows the user to core in both wet and dry applications, as the universal quick-connect hose ensures simple and effective wet coring in the toughest applications. The MX FUEL™ Handheld Core Drill has a compatible Core Drill Stand that is also available (sold separately). The MX FUEL™ Handheld Core Drill is ONE-KEY™ compatible, allowing users to track and manage the tool.



FEATURES

  • AUTOSTOP™ technology and a patented clutch provide maximum control and prevent over-rotation in case the machine gets bound up
  • Integrated Pressure Gauge helps provide efficient drilling pressure to maximise productivity and runtime
  • Onboard water connection allows both wet and dry coring; a universal quick connect hose ensures simple and effective wet drilling in the toughest applications
  • Power to core 152mm (6") holes in reinforced concrete
  • Two speed settings, optimised for holes sized 25-76mm and 76-152mm
  • ONE-KEY™ Tracking & Management
  • On Board Digital Level & Performance Gauge to Optimise Drilling Zone

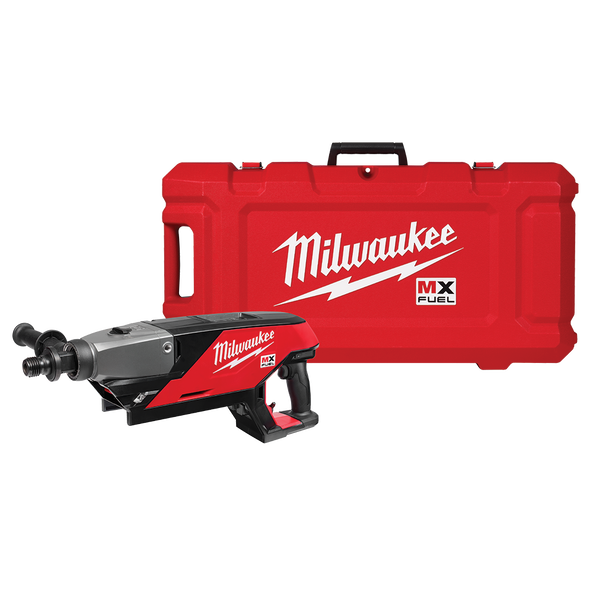

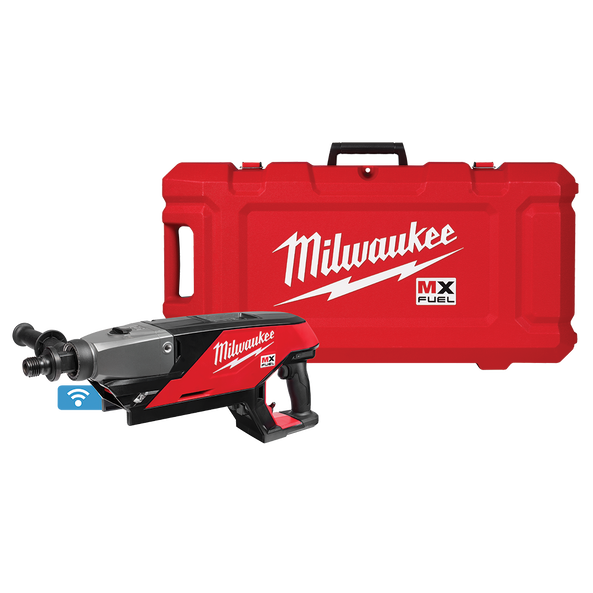

WHAT'S INCLUDED

  • (1) MX FUEL™ Handheld Core Drill [MXFDCD150-0C]
  • (1) Quick-Connect
  • (1) Spindle Adaptor
  • (1) Trigger Lock-On
  • (1) Side Handle
  • (1) Carrying Case
  • (Not Included) Battery and Charger



SPECIFICATIONS

PLATFORM: MX FUEL™

RPM: 800 / 1,600

SPINDLE SIZE: 1-1/4"-7 Spindle Thread

SOLID BIT CAPACITY: 152.4mm (6")

ONE-KEY ENABLED: Yes

LENGTH: 548mm

WEIGHT: 9.8kg

WARRANTY: 2 Years
