COMPRESS VARIABLE SPEED ROTARY SCREW 20HP 200L

Stock Code:
211034
Supplier Stock code:
HQD20VSHP-FF-8
Price:
$22,852.50 Inc GST
Stock Level:
Out of Stock

All pricing includes GST. Prices are for SA customers and are subject to change without notice. Freight & Shipping outside of Adelaide metro will incur additional Freight charges

Unavailable for Online Purchase

Description

Peerless Products Variable Speed Rotary Screw Compressors are here to save you money!

Most air compressors run continuously even when you’re not using the air. This machine will perform to your requirements and save you money at the same time by only doing the work that you want it to do!

Our HQD Variable Speed Compressors will reduce your power consumption and give you a quick return on your investment within no time. The 20HP models have a great output of 2200 Litres per minute at 8 Bar this compressor is designed for 8+ person workshops easily keeping up with high demand.

For ease of use it features an LED touchscreen control panel allows the user to easily operate and view the functionality of the air compressor along with viewing service times which are based on run hours. Operating pressure can be viewed in MPA or PSI along with the ability to view energy consumption.

With the Peerless Rotary Screw Compressors, we test each model prior to being sent out from our factory for a minimum of 4 hours. The quality assurance inspector then dates and signs the service label notifying of when the next service is required.

Services on Screw compressors are based on hourly usage. The first inspection is in 500 hours of use, this is like a new car inspection. This is to make sure that all seals, valves, filters and oil condition is all working correctly. From there the services are based on the following;

2000 Hours
4000 Hours
6000 Hours
8000 Hours and so on.

The services are also based on the environmental conditions – if it is in a fairly dirty environment, services maybe at sooner intervals.

Most sites where an air compressor is installed you may have your own maintenance team, if this is so, yes you can service your own air compressor. This does not void your warranty if serviced correctly under the manufacture guidelines.

Please note: Power supply is very important when selecting an air compressor, along with selecting the right one for the application. Please talk to your local Peerless representative.

Base Mount (No tanks)
The base mount option is a great option if you're limited on space or if you already have an air receiver. Don't forget, if you're upgrading from an older piston model, you may be able to utilise the tank.

Twin Tank option
In order to keep our variable speed screw compressors compact we have designed this twin tank model. This allows for the unit to come in at only 1500MM x 750MM X 1545MM, minimising the required space and not budging on quality. This gives you a great 300L air receiver meaning that the compressor has a very small recovery time to build back up to full pressure. The tanks are welded, painted and fitted out in our Bendigo factory.

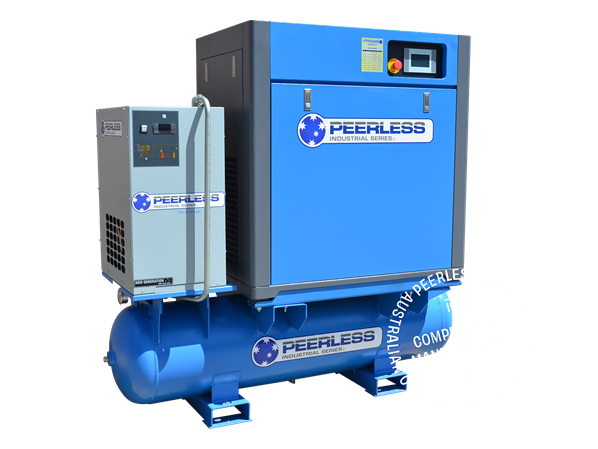

Full Feature - Screw, dryer & tank
The Full Feature models is the ultimate space saver with the screw component and air dryer situated on top of a 200L air receiver in order to properly utilise valuable floor space.

Key things to check:

  • Check the positioning of your air compressor – no direct sunlight, efficient air flow, non-dusty environment, cool if required.
  • Change the oil -  if discoloured change immediately, this is the life line of your air compressor.
  • Change the air intake filter - This will keep the pump working efficiently and keep the oil clean protecting your bearings or Air-end.
  • Check your air fittings – Air leaks create increased duty cycles making your air compressor work harder, creating heat.
  • Inspect your V belts – Make sure you have the right tension and no wear and tear.
  • Correct ventilation around the air compressor – all air compressors need air flow.
  • Check all your inline filters – restricted or blocked filters lower your efficiency to work by reducing your air flow – these work harder in hotter months.
  • Maintain your Dryer – check or re-gas your coolant make sure correct amount of air flow going through.



Code

HP / kW

Dimensions (LxWxHmm)

Weight

Amps Required

Tank Capacity (L)

HQD20VSHP

20HP / 15kW

1090x710x1100

350

32

-

HQD20VSHP-TT

1500x750x1545

450

300L

HQD20VSHP-FF

1690x690x1650

450

200L

Free Air Delivery

Code

PSI

Bar

LPM

M3/H

CFM

HQD20VSHP-8

116

8

2200

132

77.75

HQD20VSHP-TT-8

HQD20VSHP-FF-8

HQD20VSHP-10

145

10

2000



70.67

HQD20VSHP-TT-10

HQD20VSHP-FF-10

HQD20VSHP-12

175

12

1800



63.6

HQD20VSHP-TT-12

HQD20VSHP-FF-12

Technical Data

Cooling method

discharge temp (°C)

Driving type

dBa (+/-2)

Outlet thread

Electricity

Amps draw (Full load)

Air cooled

Ambient temp +15°C

Direct drive

66

3/4"BSP

415V

32

Dryer Specifications

Code

Model

Compressor KW

Working Pressure

LPM

m3/h

CFM

Power Plug

WB15D

WB15 Dryer

453KW

Min. 6 Bar
Max. 13 Bar
