LASER NEDO SIRIUS 1 HV GREEN SET 2 471952

Stock Code:

212153

Supplier Stock code:

471952

Price:

$2,475.00 Inc GST

Note pricing for SA customers

Stock Level:

Low Stock

All pricing includes GST. Prices are for SA customers and are subject to change without notice. Freight & Shipping outside of Adelaide metro will incur additional Freight charges

Description

Fully automatic horizontal/vertical rotating laser for interior finishing and outdoor missions
Green laser beam with high-power laser diode (laser class 3R) for optimum visibility, even under unfavourable lighting conditions
Automatic level control stops the laser if it receives a heavy jolt. In this way, height errors are avoided.
Upward and downward plumb beam
Manual setting of slopes in 2 axes
Scanning function and dot mode
Rugged housing protected against low pressure jet water in accordance with IP 65
Rotor protection made of cast aluminium and break-proof glass
High-power NiMH rechargeable batteries for long operation
Remote control for a convenient handling

Protected against low pressure jet water and dustproof in accordance with IP 65

Thanks to its ingenious seal, the SIRIUS 1 rotating laser is protected against low pressure jet water and dustproof in accordance with IP 65 and therefore meets sealing requirements expected of much more expensive rotating lasers.

Improved drop protection

The new rotor protection in aluminium and shatterproof glass means the new SIRIUS 1 is even more robust, so it can cope easily with knocks and falls.

Improved ergonomics

Thanks to the new designed rubber handle the new SIRIUS 1 sits even better in one's hand.The rubber-covered feet ensure improved stability even on smooth surfaces.

Green laser lines are four times as visible to the human eye as red lines. Owing to the excellent visibility of its green laser line, the Nedo SIRIUS 1 HV green rotating laser has a much bigger working range in which a laser receiver is not needed. Thanks to innovative laser technology, the laser in the SIRIUS 1 HV green does not have the operating temperature disadvantages that used to be typical of green lasers. The Nedo SIRIUS 1 HV green rotating laser can thus operate in the same temperature range as the SIRIUS 1 HV with red laser diodes.
The Nedo SIRIUS 1 HV green can be supplied with a class 2 or class 3R laser.

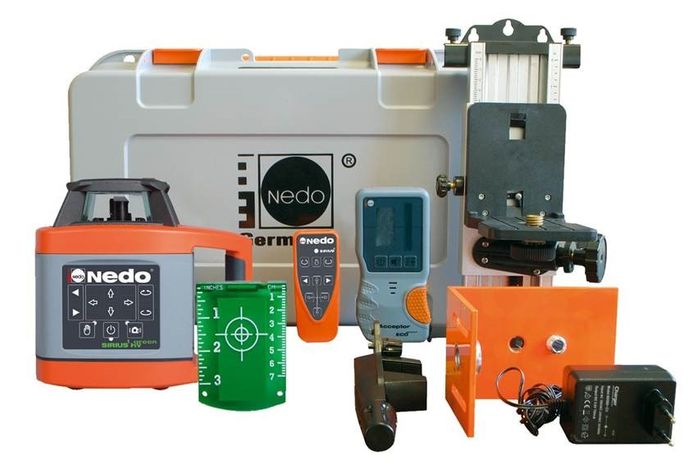

Package includes

Technical data:
Accuracy	± 1 mm/10 m
Self-levelling range	± 5° motor-powered with automatic level control
Working range Ø	approx. 300 m with receiver
Laser	< 5 mW, laser class 3R, 515 nm or < 1 mW laser class 2, 515 nm
Rotating speed	0, 60, 120, 300 and 600 rpm
Scanning angle	0°, 6°, 20°, 50° and 90°
Protection class	IP 65
Power supply	rechargeable batteries NiMH 4.8 V, 3800 mAh
Operation duration	approx. 15 h
Weight	2.3 kg
Dimensions (width/depth/height)	150 mm x 200 mm x 190 mm
Operating temperature	-20°C to + 50°C
Connection thread	5/8''

Laser receiver ACCEPTOR green

Technical data:
Accuracy	switchable, ± 1 mm and ± 2 mm
Working range Ø	300 m
Length of detector field	40 mm
Protection class	IP 54
Operating temperature	0°C to + 40°C
Power supply	1 x 9V mono-cell
