LASER DUAL GRADE NEDO PRIMUS 2 HVA2N INC RECEIVER

Stock Code:

212145

Supplier Stock code:

472061

Price:

$3,960.00 Inc GST

Note pricing for SA customers

Stock Level:

In Stock

All pricing includes GST. Prices are for SA customers and are subject to change without notice. Freight & Shipping outside of Adelaide metro will incur additional Freight charges

Description

Ideal for use on every construction site. Perfect for levelling in applications such as:

Includes:

Rotating laser PRIMUS2 HVA2N
Multi-function module COMMANDER 2 HVA2N (laser receiver incl. radio remote control)
Heavy-Duty rod clamp
Magnetic target board
Rechargeable batteries
Charger
Quick-Fix rapid locking system
Transport case

Features

Fully automatic rotating laser for horizontal and vertical applications
Direct grade entry for the x and y axis
Tilt control: the position of the laser is continuously monitored in the tilt mode
AutoAlign function: automatic alignment of the laser beam to the zero mark of the laser receiver
Robust motor-powered levelling
Large, clear display showing inclination, rotation speed, battery level, etc.
Automatic level control stops the laser if it receives a heavy jolt. In this way, height errors are avoided.
High-power laser diode, laser class 3R, for highly visible laser beam and easy work at the
close range
Alternatively available with laser class 2 with Bright Beam Technology^TM
Scan function and dot mode
Upward plumb beam
Rotor protection made of break-proof glass
Highly accurate even under toughest conditions
Incl. multi-function module COMMANDER 2 HVA2N, laser receiver incl. radio remote control

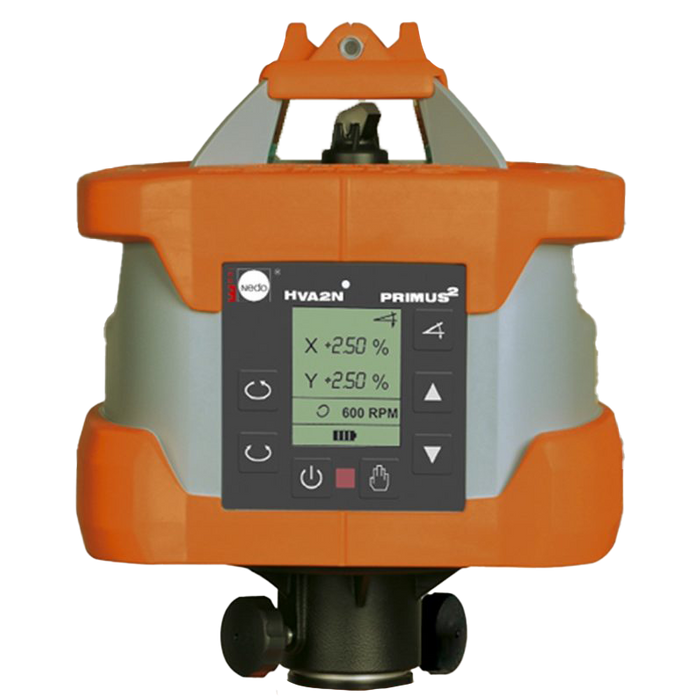

Nedo PRIMUS 2 HVA2N

Technical data:
Levelling accuracy	± 0.5 mm/10 m
Self-levelling range	± 5° motor-powered with automatic level control on the horizontal axis
Accuracy of the slope function	± 0.015%
Setting of slopes in two axes	± 10%, direct entry
Working range Ø	approx. 700 m with receiver COMMANDER 2 HVA2N
Laser	< 5 mW, laser class 3R, 635 nm or < 1mW, laser class 2, 635 nm
Working range of radio remote control	approx. 150 m
Working range AutoAlign	approx. 50 m
Rotating speed	10, 60, 300 and 600 rpm
Scanning angle	0°, 5°, 10° and 15°
Protection class	IP 66
Power supply	Rechargeable batteries NiMH 4.8 V, 8500 mAh
Operation duration	approx. 100 h
Connecting thread	5/8’’
