LASER NEDO LINUS 1 HV INC RECIEVER 471810
All pricing includes GST. Prices are for SA customers and are subject to change without notice. Freight & Shipping outside of Adelaide metro will incur additional Freight charges
Description
Ideal for use on every construction site. Perfect for levelling, aligning and marking off right angles such as:
Gardening and landscaping:
- Paving
- Borders
- Car parks
- Terraces and sun decks
Structural and civil engineering:
- Marking off right angles in terrain
- Foundations
- Formwork and walls
Woodworking and carpentry:
- Timber post structures
- Sole plates
- Carports and 1:1 elevations
Steel construction:
- Columns
- Sleeve foundations
- Weld-on plates
- Conservatories

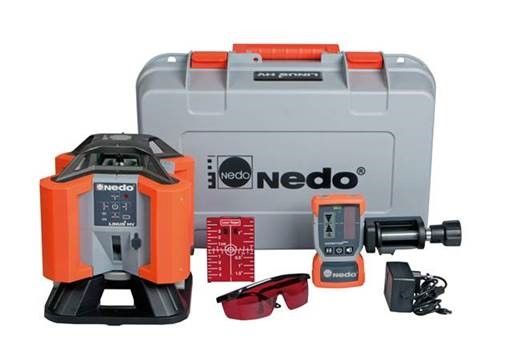

Includes:
- Universal laser LINUS 1 HV
- Laser receiver ACCEPTOR Line with mm display
- Heavy-Duty rod clamp aluminium die casting
- Multifunctional base with fine adjustment for precise axis alignment
- Rechargeable batteries
- Charger
- Laser glasses
- Target board
- Transport case
Features
- Extremely robust
- Horizontal 360° laser line
- Four vertical, individually switchable laser lines at 90° angles, pointing down
- Plumb point
- Robust, motor-powered levelling, Self-levelling range ± 5°
- Rugged housing protected against low pressure jet water in accordance with IP 65
- Connecting thread 5/8“
- Multifunctional base made of diecast aluminium with fine adjustment for precise axis alignment
- Laser receiver ACCEPTOR Line with mm display and Heavy-Duty rod clamp made of aluminium
The Nedo LINUS 1 HV is a new, extremely robust, fully automatic universal laser for levelling, aligning and marking off right angles for outdoor applications and interior finishing.
Versatile.
The new, fully automatic universal laser Nedo LINUS 1 HV combines a horizontal 360° laser line with four individually switchable vertical laser lines arranged at 90° angles to one another. The vertical laser diodes are configured so that the laser lines start right at the foot of the unit. An additional plumb beam marks the intersection of the four vertical lines on the floor. The new Nedo LINUS 1 HV is therefore perfect not only for levelling and aligning, but also for quick and easy marking off right angles in outdoor applications. It is ideal for placing formwork, building carports, terraces and garages, and laying slabs and paving stones.
Robust.
The Nedo LINUS 1 HV has a robust, reliable motor-powered self-levelling mechanism. Digital levels and electric servomotors ensure exact alignment of the horizontal 360° laser line and the four vertical laser lines within the self-levelling range of ±5°. The shock-resistant housing with an aluminium cage is dust-proof and splashwater protected in accordance with IP 65, allowing it to be used in all kinds of weather. Thanks to its rugged design and thick lining, the Nedo LINUS 1 HV can easily withstand a fall from a height of 1m. Perfect for tough applications in structural and civil engineering, gardening and landscaping, wood and steel construction.
LINUS 1 HV
Ref.-No. | 471810 |
Levelling accuracy | ± 1 mm/10 m |
Self-levelling range | ± 5° motor-powered, with automatic level control of the horizontal axes |
Working range Ø | up to 200 m with receiver ACCEPTOR Line |
Laser | Laser class 2M, 635 nm |
Protection class | IP 65 |
Power supply | Rechargeable batteries NiMH 4.8 V, 3800 mAh |
Vertical lines' angle of aperture | 135° |
Operation duration | approx. 30 h |
Connection thread | 5/8’’ |
Laser receiver ACCEPTOR Line
Technical data: |
|
Accuracy | switchable ± 1 mm and ± 4 mm |
Working range Ø | 100 m |
Length of detectorfield | 50 mm |
Reception angle | ± 65° |
Protection class | IP 67 |
Operating temperature | -20°C up to + 50°C |
Power supply | 2 x 1.5 V (AA) or rechargeable batteries NiMH |
Operation duration | up to 70 h |
