LASER DUAL GRADE NEDO PRIMUS 2 H2N+ WITH COMMANDER

Stock Code:

211768

Supplier Stock code:

472034

Price:

$3,520.00 Inc GST

Note pricing for SA customers

Stock Level:

In Stock

All pricing includes GST. Prices are for SA customers and are subject to change without notice. Freight & Shipping outside of Adelaide metro will incur additional Freight charges

Description

Features:

Fully automatic dual slope laser
Robust, motor-powered levelling
Direct grade entry for the x and y axes
Slope values once input are stored upon switch-off
Large, clear display showing inclination, rotation speed, battery level, etc.
Highly visible, powerful laser beam, laser class 3R, for easy work at close range
Automatic level control stops the laser if it receives a heavy jolt. In this way, height errors are avoided.
Rotor protection made of break-proof glass
Carefree package with 3-year warranty and free annual check during the warranty period

PRIMUS2 H2N+ with tilt control

The position of the laser is continuously monitored in the tilt mode too by the tilt monitoring feature and readjusted when necessary. For the user, that means an even
better accuracy for the rotating laser and more reliability in the slope mode.

Multi function module COMMANDER2:
Sturdy laser receiver with integrated radio remote control. All functions of the laser including input of slopes can be controlled with the COMMANDER2.

Applications:
Elevation control, depth control for excavations, rough and fine grading, setting foundations, concrete forming, bricklaying, laying screed, setting reference markers, machine automation, landscaping, checking of inclinations.

Technical data multifunction mode Commander 2:

Accuracy	switchable, ± 0.5 mm, ± 1.0 mm, ± 2.0 mm, ± 4.0 mm
Power supply	3 x 1.5 V batteries (AA) or rechargeable batteries (NiMH)
Length of detector field	70 mm
Operating temperature	-20°C to +50°C
Display	LCD display on front and back
Protection class	IP 66

Technical data laser PRIMUS2 H2N+/H2N:

Self-levelling range	± 5° motor-powered, with automatic level control
Self-levelling accuracy	± 0.5mm/10 m
Accuracy of the slope function	± 0.015% PRIMUS² H2N+ ± 0.1% PRIMUS² H2N
Setting of slopes in two axes	± 10%, direct entry
Laser type	laser class 3R, 635 nm, < 5 mW
Rotating speed	600 rpm
Operation duration	approx. 100 h
Weight	4.0 kg
Dimensions (W/D/H)	210 mm x 208 mm x 200 mm
Operating temperature	-20°C to + 50°C
Working range Ø	approx. 700 m with receiver ACCEPTOR^pro
Working range radio remote control	150 m
Protection class	IP 66

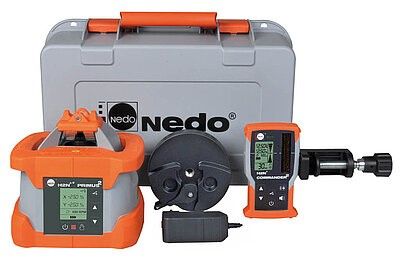

Includes

Rotating laser PRIMUS 2 H2N+
Multi-function module COMMANDER 2 H2N+ (laser receiver with mm display incl. radio remote control)
Heavy-Duty rod clamp
Rechargeable batteries
Charger
Quick-Fix rapid locking system
Transport case
